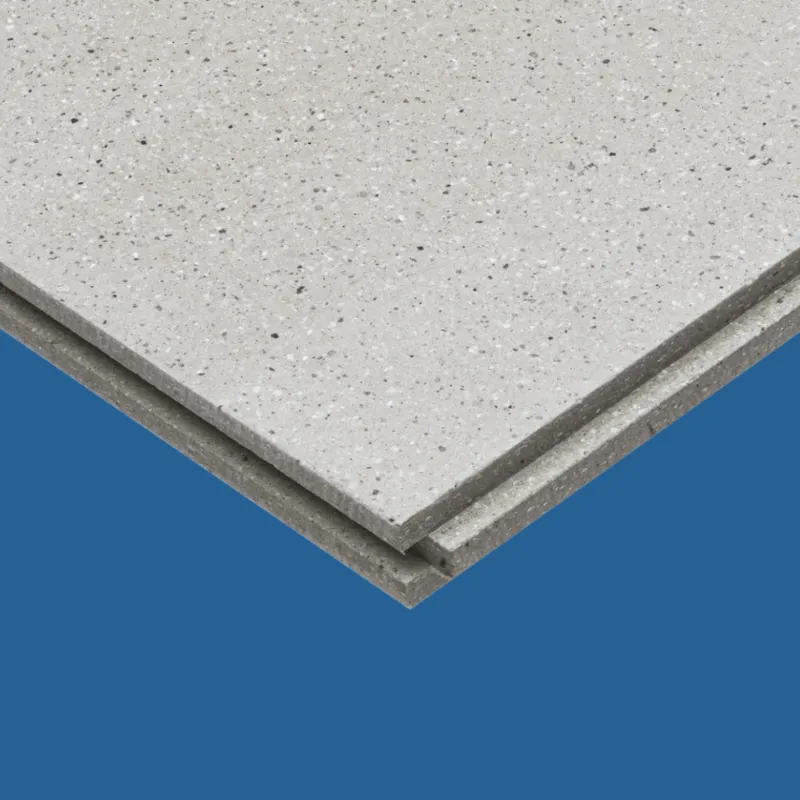

Resonate Gypdeck Structural 25

Description

Resonate Gypdeck Structural 25 is a high mass, load bearing gypsum fibre floor panel. It is suitable to spanning joists, pedestals and acoustic cradle and batten systems.

The low thermal resistance of the boards also makes them hugely effective when used in conjunction with underfloor heating applications.

The boards are very dimensionally stable and do not suffer from contraction and expansion issues normally associated with timber based structural flooring.

They are also ideal for laying brittle floor finishes directly over, such as porcelain or ceramic tiles (Brinell >40N/mm²)

• Excellent impact and airborne sound reduction
• High density boards accept ceramic and porcelain floors directly without a decoupling mat
• Dry system reduces build times.
• Does not burn when exposed to fire (non-combustible – A1 fire rating)

Resonate Gypdeck Structural 25 Panel m² – 0.72m² per panel

Gypdeck Structural Panel Dimensions

600mm (W)

1200mm (L)

18mm or 25mm (H)

Gypdeck Structural Panel Weight

18 = 21kg per panel

25 = 29kg per Panel

Gypdeck Structural Density

1600 kg/m³
